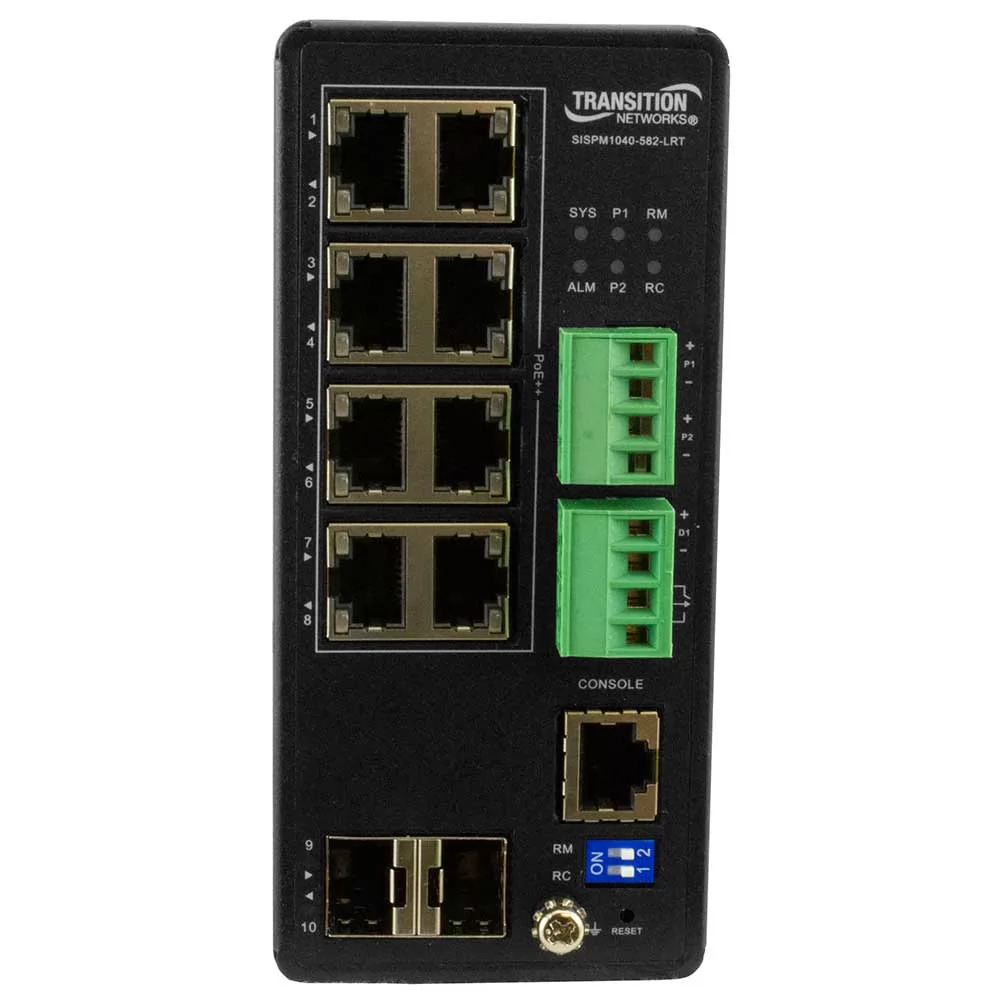

SISPM1040-582-LRT
Managed Hardened Gigabit Ethernet PoE++ Switch
(8) 10/100/1000Base-T PoE++ Ports + (2) 100/1000Base-X SFP Slots
El SISPM1040-582-LRT es un conmutador PoE ++ administrado adecuado para conectar y alimentar dispositivos en entornos difíciles. Tiene (8) puertos PoE ++ 10/100/1000 con (2) ranuras SFP 100/1000 de doble velocidad. El conmutador puede suministrar hasta 90 vatios por puerto en (4) puertos o 60 vatios por puerto en (8) puertos simultáneamente. El conmutador también incluye el software integrado del Sistema de administración de dispositivos (DMS) que proporciona las herramientas avanzadas necesarias para la administración total de todos los dispositivos direccionables IP. El exclusivo DMS proporciona integradores de seguridad con un costo general más bajo, menos tiempo de inactividad y una administración más fácil de toda la red PoE +. Los interruptores reforzados de Transition Networks están certificados para operar de manera confiable en entornos hostiles como los que se encuentran en pisos de fábricas, recintos exteriores u otros entornos desafiantes.
Features
IPv4/IPv6 dual protocols
Supports Jumbo Frame up to 9K bytes
Authentication – RADIUS, TACACS+
DHCP Relay, DHCP Snooping, DHCPServer
L2/L3/L4 ACLs Support MAC, VLAN ID, or IP address, protocol, per port
LLDP (Link Layer Discovery Protocol)
ITU-T G.8031 Ethernet Linear Protection
ITU-T G.8032 Ethernet Ring Protection Switching
Rapid Ring for fast recovery
IEEE 802.3az Energy Efficiency
IP Source Gaurd, Port Security
Port Mirroring
Syslog
PoE Features
Compliant with IEEE 802.3bt PoE++
Compliant with IEEE 802.3at PoE+
Compliant with IEEE 802.3af PoE
IEEE 802.1AB LLDP-MED Configuration
PoE Configuration
PoE Scheduling
Power Delay
Auto Power Reset
DHCP per Port
Software Features
Management: Web Management, SNMP V1/V2c/V3, SSH, CLI
Port Trunk: Supports IEEE 802.3ad port trunk with link aggregation control protocol (LACP) and static trunk
Multicast: Support IGMP Snooping V1/V2/V3, MVR, MLD Snooping V1/V2
Quality of Service: Supports 8 hardware queues. Strict priority and WRR, Ingress policer, Egress shaping and per port rate control
Spanning Tree: Supports IEEE 802.1s MSTP, IEEE 802.1w RSTP and IEEE 802.1D STP Compliant
VLAN: Port Based VLAN, IEEE 802.1Q tag-based, up to 4k VLAN entries, QinQ, MAC-based VLAN, Management VLAN, Voice VLANs, and Private VLAN
Firmware Update through TFTP and HTTP/HTTPs
IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731
Support IEEE 1588 v2 PTP
Device Management System
Graphical Monitoring – Topology view, Floor view, Map view
Traffic Monitoring
Troubleshooting – Network Diagnostic, protection mechanism, performance and link management
